Prime Drilling Back to Top

Canadian Distributor

​


Sales - Service - Parts

Compact Drilling Rigs

Compact Drilling Rigs

​

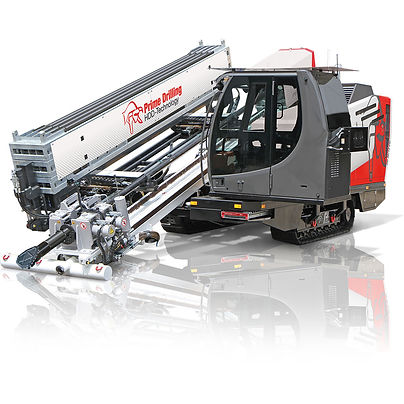

PD 30/12 CU

Technical specifications

Power: 205 kW

Torque: 12.5 kNm

Speed: 200 rpm

Inclination angle: 11 - 18°

Weight: 18.5 t

on-board pump

Flow rate: 750 l/min

Flow pressure: 60 bar

​


PD 50/30 CU

Technical specifications

Pull force: 50 t

Torque: 30 kNm

Power rating: 224 kW

Weight: 17,7 t

on-board pump

Engine capacity: 87 kW

Number of revolutions: 185 rpm

Volume rate: 1029 l/min

Pressure max.: 30 bar


PD 60/30 CU

Technical specifications

Pull force: 60 t

Torque: 30 kNm

Power rating: 224 kW

Weight: 19,5 t

on-board pump

Engine capacity: 87 kW

Number of revolutions: 185 rpm

Volume rate: 1029 l/min

Pressure max.: 30 bar

Pressure max.: 30 bar


PD 80/45 CU

Technical specifications

Pull force: 80 t

Torque: 45 kNm

Power rating: 224 kW

Weight: 19,5 t

on-board pump

Engine capacity: 87 kW

Number of revolutions: 185 rpm

Volume rate: 1029 l/min

Pressure max.: 30 bar


PD 100/50 CU+

Technical specifications

Pull force: 1000 kN

Torque: 50 kNm

Number of revolutions: 29 rpm

Power rating: 330 kW

Weight: 34 t

on-board pump

Flow Rate max.: 1.600 l/min

Pressure max.: 61 bar

Number of revolutions: 250 rpm

Engine capacity: 87 kW


PD 150/70 CU+

Technical specifications

Pull force: 1500 kN

Torque: 70 kNm

Number of revolutions: 29 rpm

Power rating: 330 kW

Weight: 34 t

on-board pump

Flow Rate max.: 1.600 l/min

Pressure max.: 61 bar

Number of revolutions: 250 rpm

Engine capacity: 87 kW

Drill Rigs

Drilling Rigs

​


PD 200/70 RP

Technical specifications

Pull Force: 2000 kN

Torque: 70 kNm

Drive Power: 470 kW

Weight: 26t

Drive: 41 rpm


PD 250/90 RP

Technical specifications

Pull Force: 2500 kN

Torque: 90 kNm

Drive Power: 470 kW

Weight: 32 t

Drive: 24 rpm


PD 300/90 RP

Technical specifications

Pull Force: 3000 kN

Torque: 90 kNm

Drive Power: 470 kW

Weight: 58 t

Drive: 39 rpm


PD 350/120 RP

Technical specifications

Pull Force: 3500 kN

Torque: 120 kNm

Drive Power: 570 kW

Weight: 63 t

Drive: 30 rpm


PD 400/120 RP

Technical specifications

Pull Forcee: 4000 kN

Torque: 120 kNm

Drive Power: 570 kW

Weight: 60 t

Drive: 30 rpm


PD 450/150 RP

Technical specifications

Pull Forcee: 4000 kN

Torque: 120 kNm

Drive Power: 570 kW

Weight: 60 t

Drive: 30 rpm


PD 500/180 RP

Technical specifications

Pull Force: 5000 kN

Torque: 180 kNm

Drive Power: 880 kW

Weight: 85 t

Drive: 30 rpm


PD 600/180 RP

Technical specifications

Pull Force: 6.000 kN

Torque:: 180 kNm

Drive Power: 880 kW

Weight: 85 t

Drive: 30 rpm
